Specification:

Interface: 50 PIN RGB

Input Port: DC005 Socket

Input Voltage: 5V~12V

Current: 1A

SIze: 91x71mm

Input: 1 channel VGA signal input; 2-way AV signal ; One channel of HDMI-compatible signal input, and this IC supports hdmi1.2; 1-way reverse signal input

Support TTL signal output, Can support: AT070TN92, AT065TN14; AT080TN52 ; AT090TN12; AT090TN10 AT070TN90; AT070TN93 AT070TN94. TTL LCD with general 50pin interface

With the LCD adapter board, the following LCD screens can be supported: Ej070na01-1024x600 resolution; Ej080na04b-1024x768 resolution; Zj070na01, universal 40pin high score LCD screen

Features:

1. brand new and high quality

2. The drive board supports wide voltage input and can work normally between 5v-24v

3. Standard backlight 6pin interface, which can be externally connected to high-voltage board

4. The driving board integrates LCD and LED backlight driving board

5. Standard LVDS signal output, which can support LCD screens of single 6, single 8, double 6, double 8 and other Standard key board interface and support dual color LED indicator display

6. With the LCD adapter board, it can also support 4.3, 5, 6, 7-inch, 40pin general screen

7. The larger output display resolution of the drive board is 1920x1080. When the display resolution exceeds 1440x900, the heat sink needs to be added according to the working condition of the IC to reduce the working temperature of the IC)

8. The VGA part of this IC can directly input YPbPr signal, which needs to be realized through software programThe driver board can add remote control function, which needs to be realized through software program

Package Include:

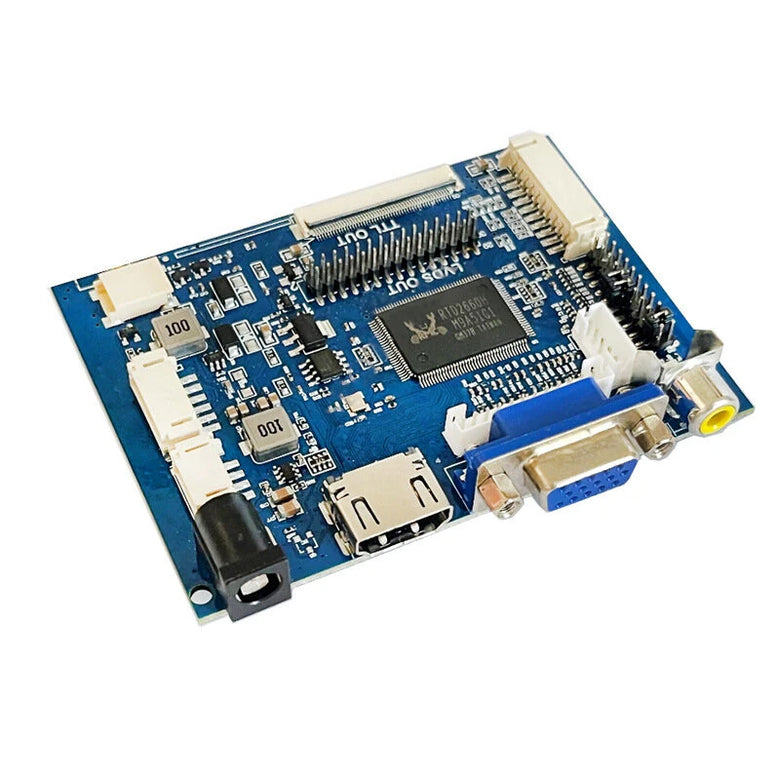

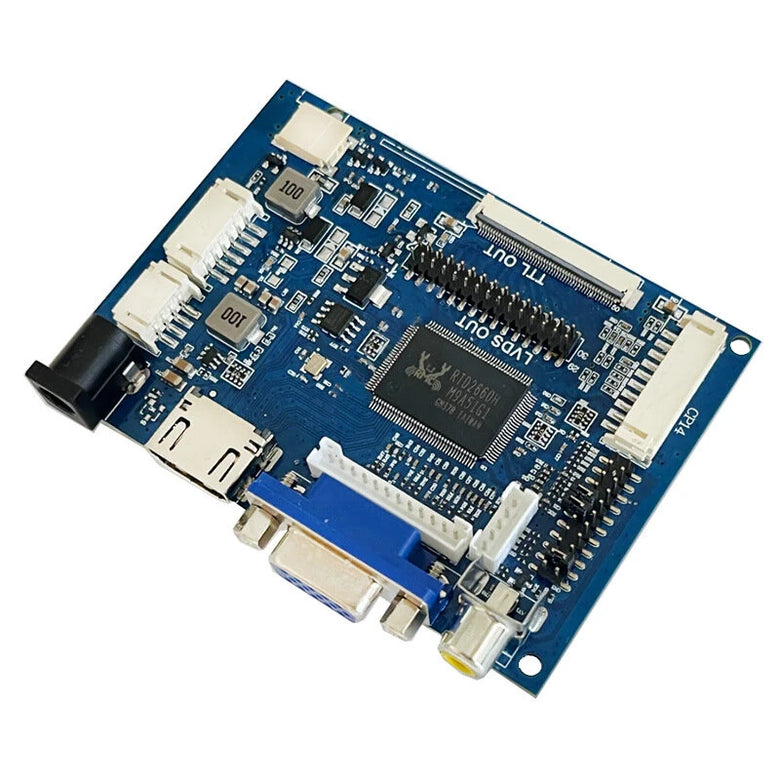

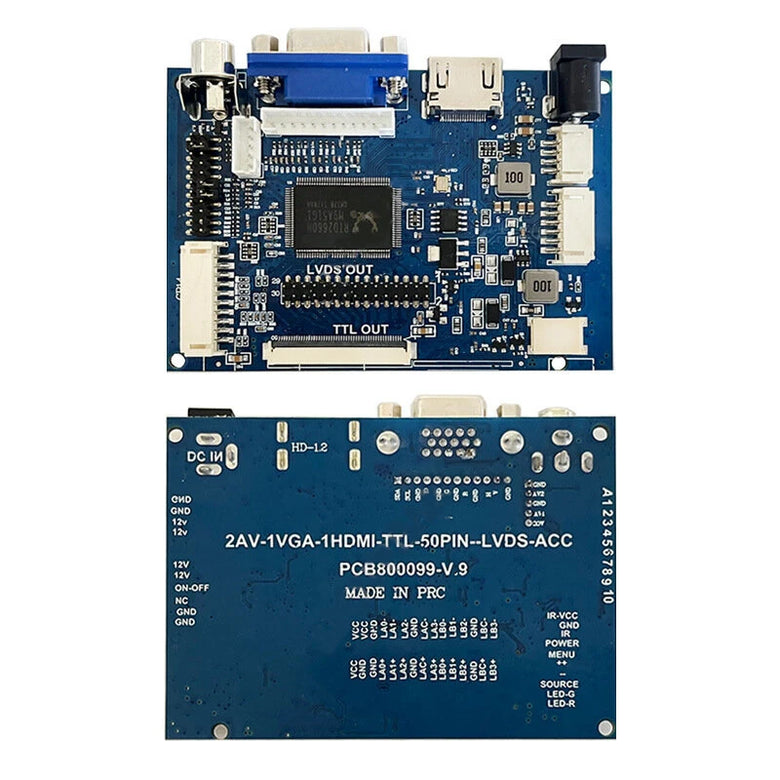

1×LCD Driving Board

1×Special 5-key keyboard
